Tailored Functionality for Engineering Requirements

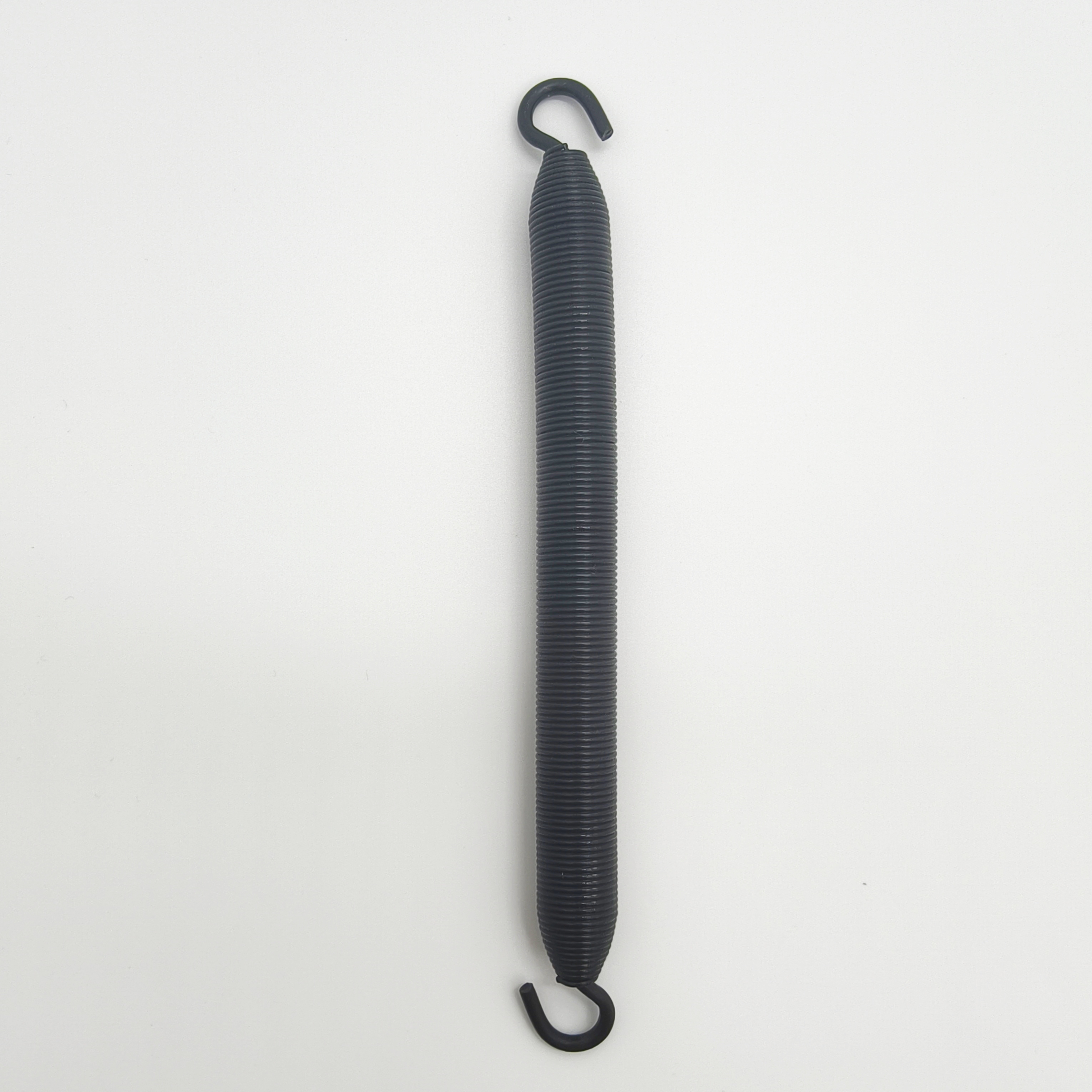

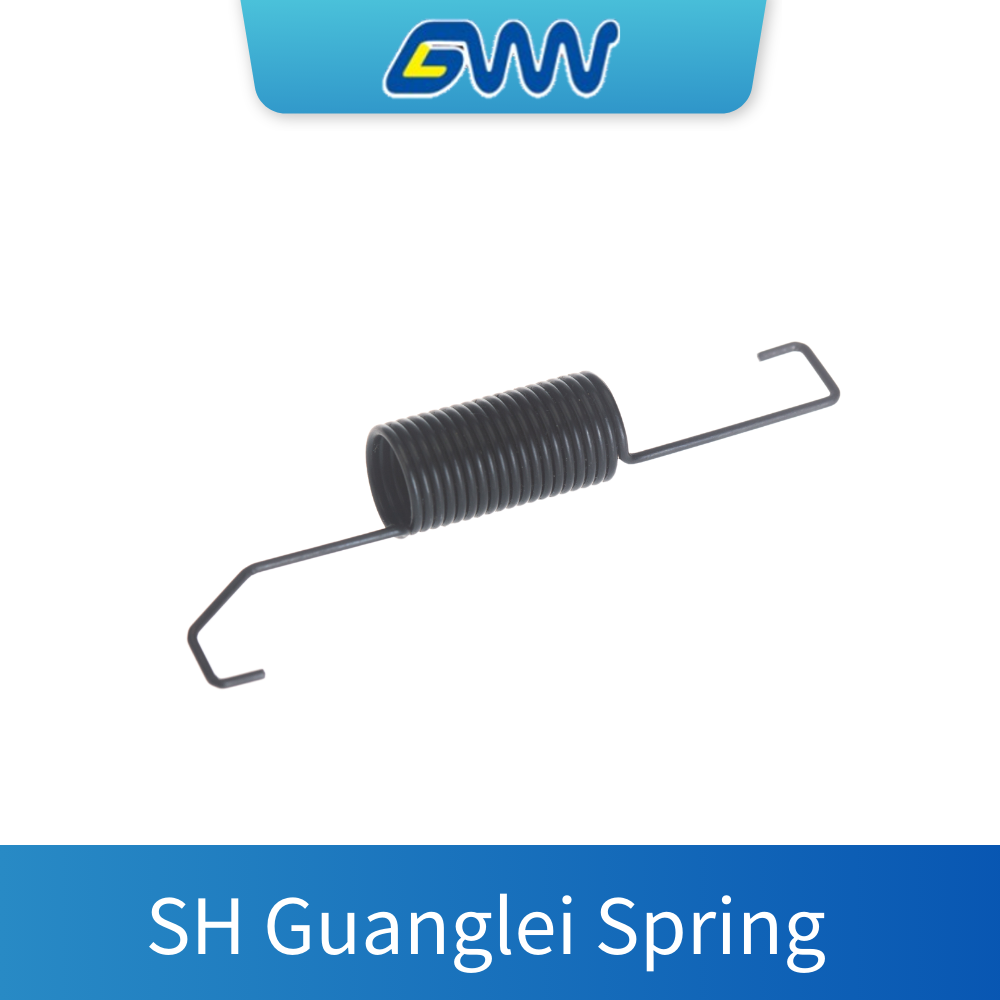

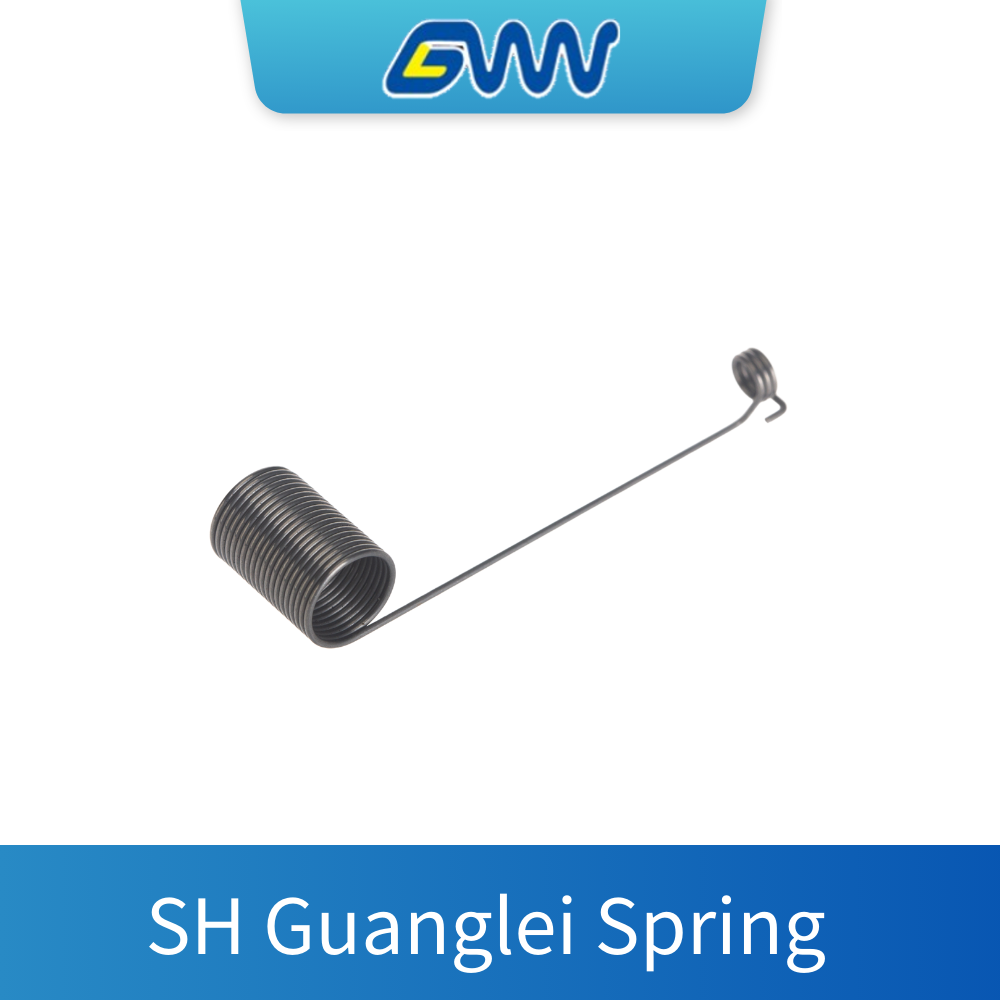

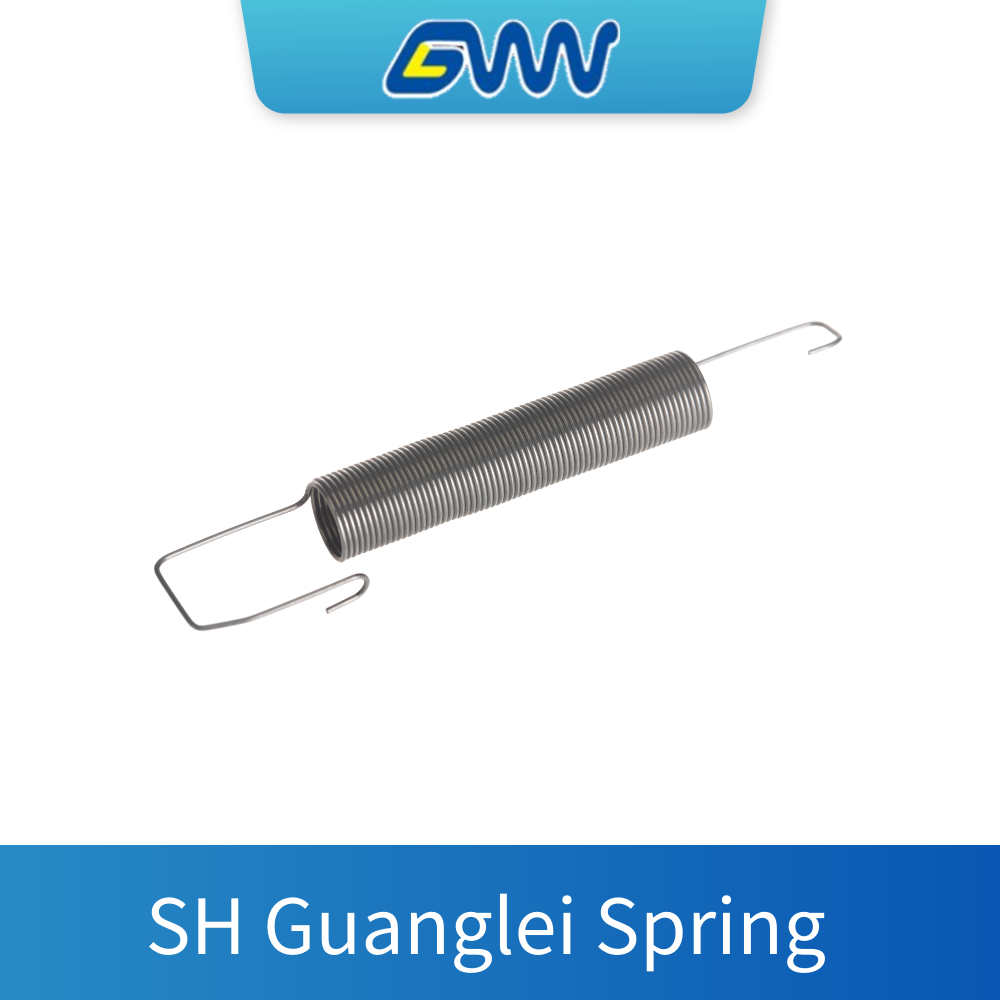

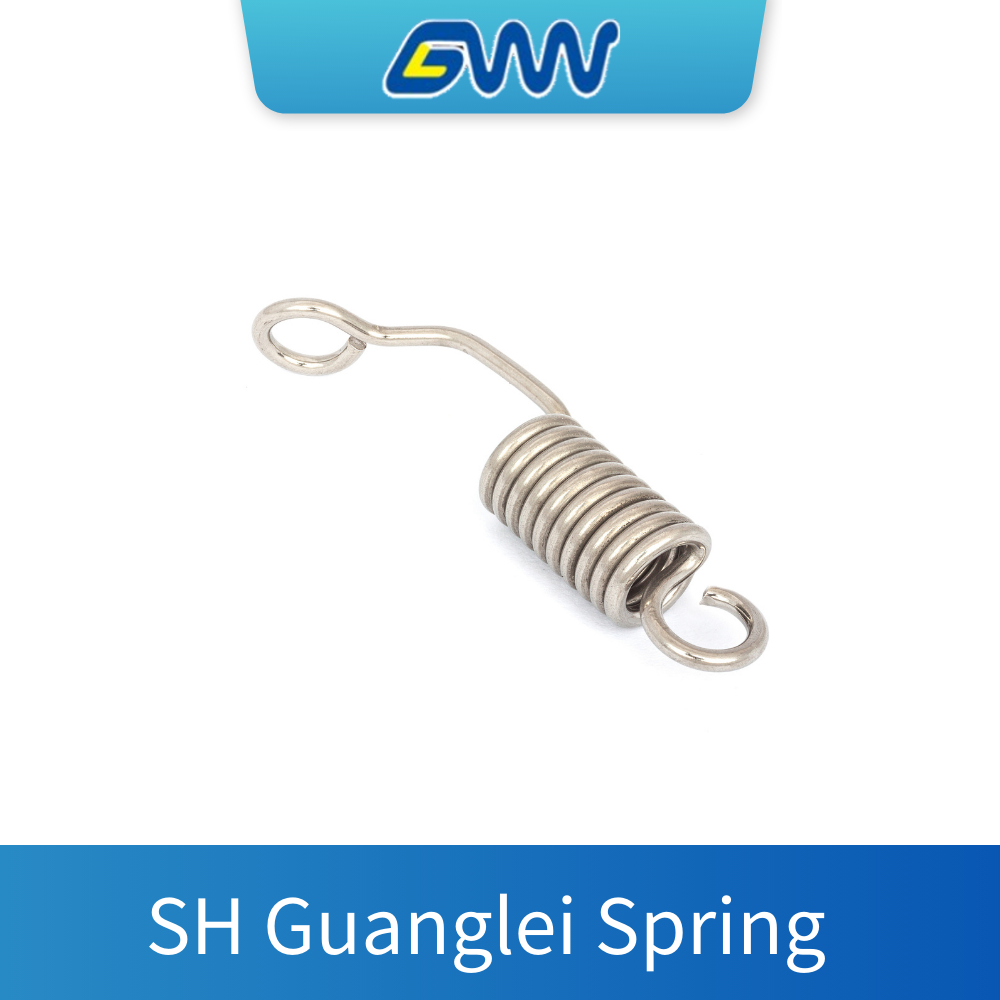

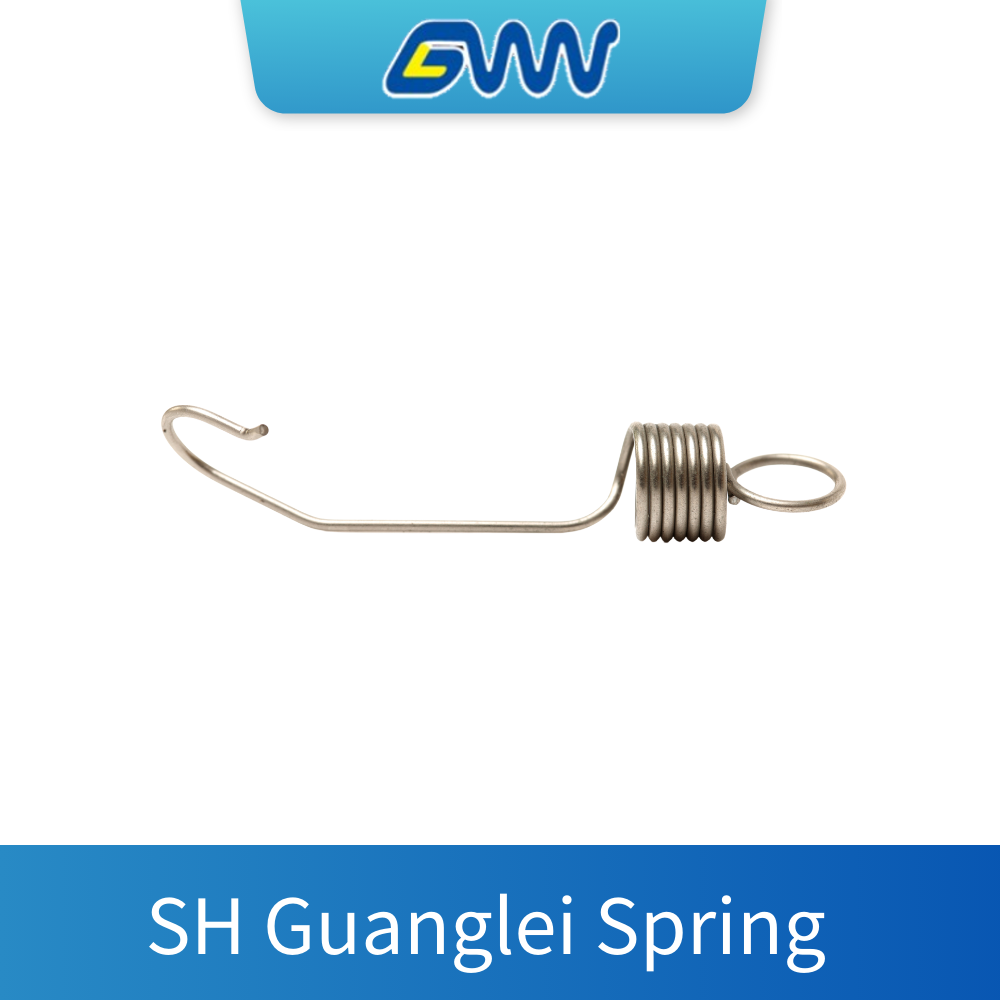

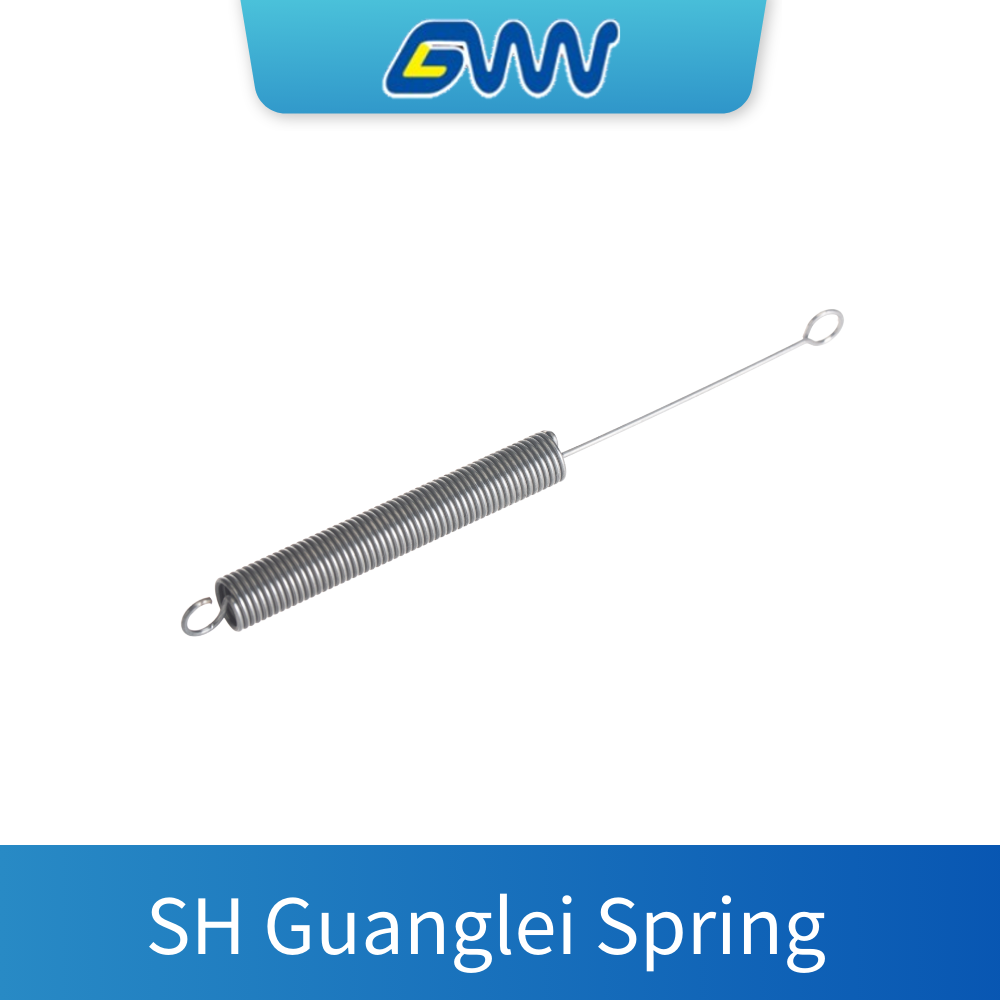

Our shaped tension spring is engineered specifically for industrial users requiring precise tension components within compact assemblies. Designed with customizable shaped hooks and arms, it supports integration into complex mechanisms where space constraints are critical. This product targets engineers and procurement professionals seeking a highly adaptable constant tension spring solution that meets exact specifications. Its design facilitates alignment with diverse system architectures, providing reliable axial tension and controlled force essential for maintenance of operational stability and mechanical responsiveness in specialized environments.

Advanced Material and Specification Versatility

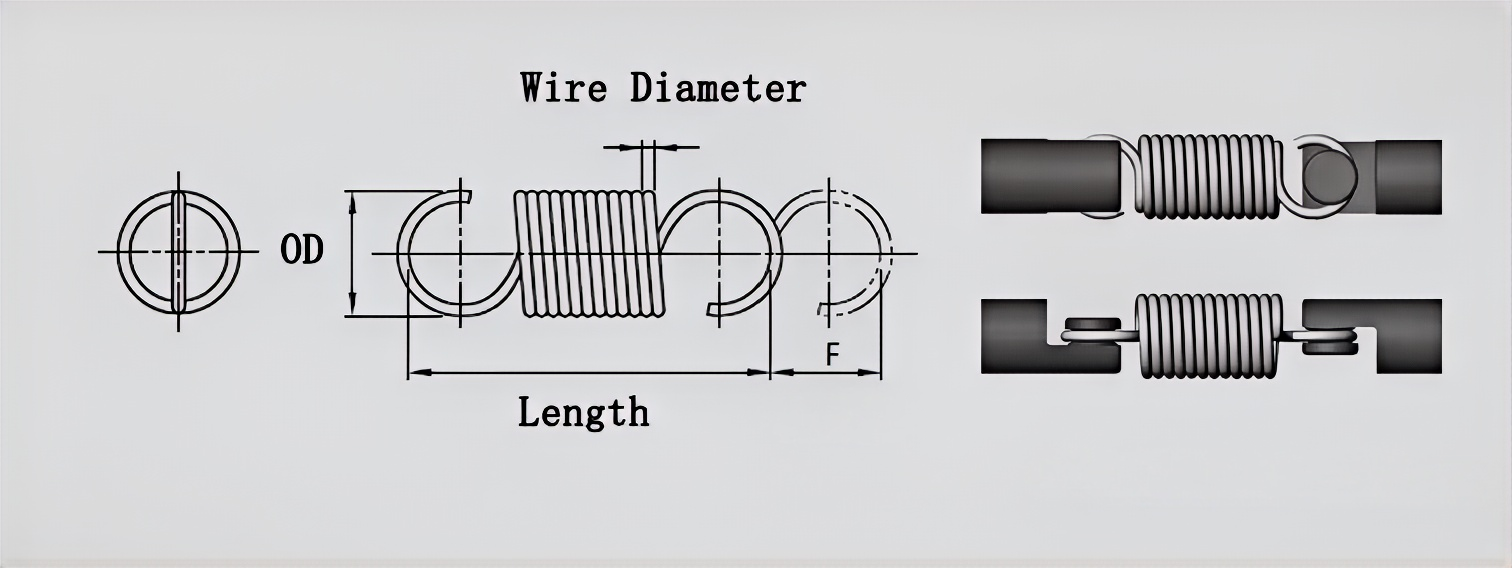

The shaped tension spring offers an extensive diameter range of 1 mm to 8 mm and adaptable lengths tailored to confined installation spaces. Built to accommodate linear compression loading, it is fabricated from an array of high-grade materials including carbon steel (65Mn, 70), alloy steels (50CrV, 55CrSi), stainless steel varieties (SUS304, SUS316), plus non-ferrous metals and special alloys such as Inconel and Hastelloy. Surface treatments like zinc and nickel electroplating, oxidation, and heat treatments enhance corrosion and wear resistance. These performance features ensure compliance with robust mechanical standards in demanding operational conditions, safeguarding precision and durability.

Integrative Use in Precision Electronics and Instrumentation

Widely applicable in customized electronic devices and precision instruments, the shaped tension spring plays a critical mechanical role where accurate tension and compact form factors are mandatory. Its design supports prototype development, assembly validation, and longevity testing in sectors requiring high-precision performance. The spring’s adaptability promotes seamless integration within existing workflows, enabling manufacturers and system integrators to achieve enhanced reliability and consistent functionality. By employing industry-proven tension spring manufacturers’ expertise, this solution upholds rigorous quality and performance expectations across specialized markets.

Product Advantages

Design Flexibility and Structural Integrity

The shaped tension spring exhibits superior adaptability through its customizable hook geometries and variable diameter and length options, allowing precise alignment with complex mechanical assemblies. Its structural design facilitates modular integration with minimal spatial impact, making it a preferred choice among tension spring manufacturers for high-performance solutions. The variety of material options supports tailored mechanical properties such as tensile strength and environmental resistance, while multiple surface treatment processes provide enhanced durability. Collectively, these factors ensure structural robustness and extended lifecycle under cyclic load conditions typical of sophisticated industrial applications.

Enhanced Performance and Application Efficiency

Optimized for linear compression and axial loading, the shaped tension spring delivers consistent force output critical for operational reliability. Its corrosion and wear-resistant coatings maintain performance in harsh environments, reducing maintenance frequency and downtime. The tailored design supports precise tension calibration, contributing to improved efficiency in assembly lines and product functionality. These operational benefits reflect its suitability for engineering professionals demanding dependable components. By collaborating with expert tension spring manufacturers, clients can leverage custom prototyping and production scalability, reinforcing superior value and integration ease within complex system architectures.

Use Scenarios

Integration Testing within Compact Electronic Assemblies

In the electronics manufacturing sector, space optimization is vital for device miniaturization and performance stability. The shaped tension spring serves as a crucial component during integration testing of systems with limited internal volume. Its customizable hooks enable precise anchoring, while the broad diameter and length range accommodate tight fit scenarios. The spring’s resistance to wear and corrosion ensures sustained tension during repeated assembly cycles, supporting strict QA protocols. By facilitating accurate tension control, this solution contributes to seamless workflow integration, enhancing both prototype validation and mass production readiness within compact assembly environments.

Precision Prototyping for Instrumentation Development

The development of precision instruments demands reliable, accurately calibrated components for mechanical responsiveness. Here, the shaped tension spring performs a critical role in prototype evaluation and tolerance verification. Its material diversity, including stainless and alloy steels, supports compliance with stringent mechanical and environmental standards, ensuring dependable performance under cyclic loading. The ability to customize shape and length expedites design validation processes and optimizes fitment within intricate housings. These features make it an indispensable tool for engineers and designers aiming to validate and refine high-precision instrument assemblies in early-stage R&D and small-batch production planning.

 FAQ

What materials are available for the shaped tension spring?

Our shaped tension springs are made from a broad range of materials including carbon steel (65Mn, 70), alloy steel (50CrV, 55CrSi, 60Si2Mn), stainless steel (SUS304, SUS316), non-ferrous metals like brass and phosphor bronze, as well as special alloys such as Inconel and Hastelloy. This diversity supports many precision application needs in tension spring manufacturing.

Can the geometry and hooks of the tension spring be customized?

Yes, the shaped tension springs feature fully customizable hooks and coil shapes designed to fit tightly within compact assemblies. Custom prototyping services ensure that the spring's geometry aligns precisely with your mechanical requirements, supporting tailored solutions as required by industrial applications involving constant tension springs.

What is the recommended installation process for shaped tension springs?

Installation involves positioning the spring within the axial load path, ensuring the shaped hooks engage securely with mating components. Proper alignment and controlled tension are critical for reliable performance, especially in precision instruments and electronic devices, where the spring’s linear compression load must be accurately maintained.

What lead times and production capabilities does Shanghai Guanglei provide?

Lead times depend on the complexity of the shaped tension spring design and the order quantity. Shanghai Guanglei Spring Co., Ltd. offers both small-batch prototyping and large-scale production backed by advanced manufacturing and surface treatment technologies. For precise delivery schedules, please contact us with your project details.
